ESP32-C3 USB-C Sensor Dev Board: CAD render of the generated PCB
CAD render · design demo · not fabricated
Design preview gallery

OHM-0001

ESP32-C3 USB-C Sensor Dev Board — 2-layer, 53.5 × 38.3 mm

Design demo2 layersRev A
MCU
ESP32-C3-WROOM-02-N4
Input
USB-C 5 V
Layers
2
Size
53.5 × 38.3 mm
Parts
27
Assembly
Single-sided
Fabrication
Not fabricated
Physical testing
Not physically tested
Contact to order this board — $149

Shipping extra

01

Prompt

ESP32-C3 board with an SHT40 sensor and USB-C, 2 layers
02

Schematic

ESP32-C3 USB-C Sensor Dev Board: Schematic
Generated schematic · design demo · not fabricated
03

Layout & 3D

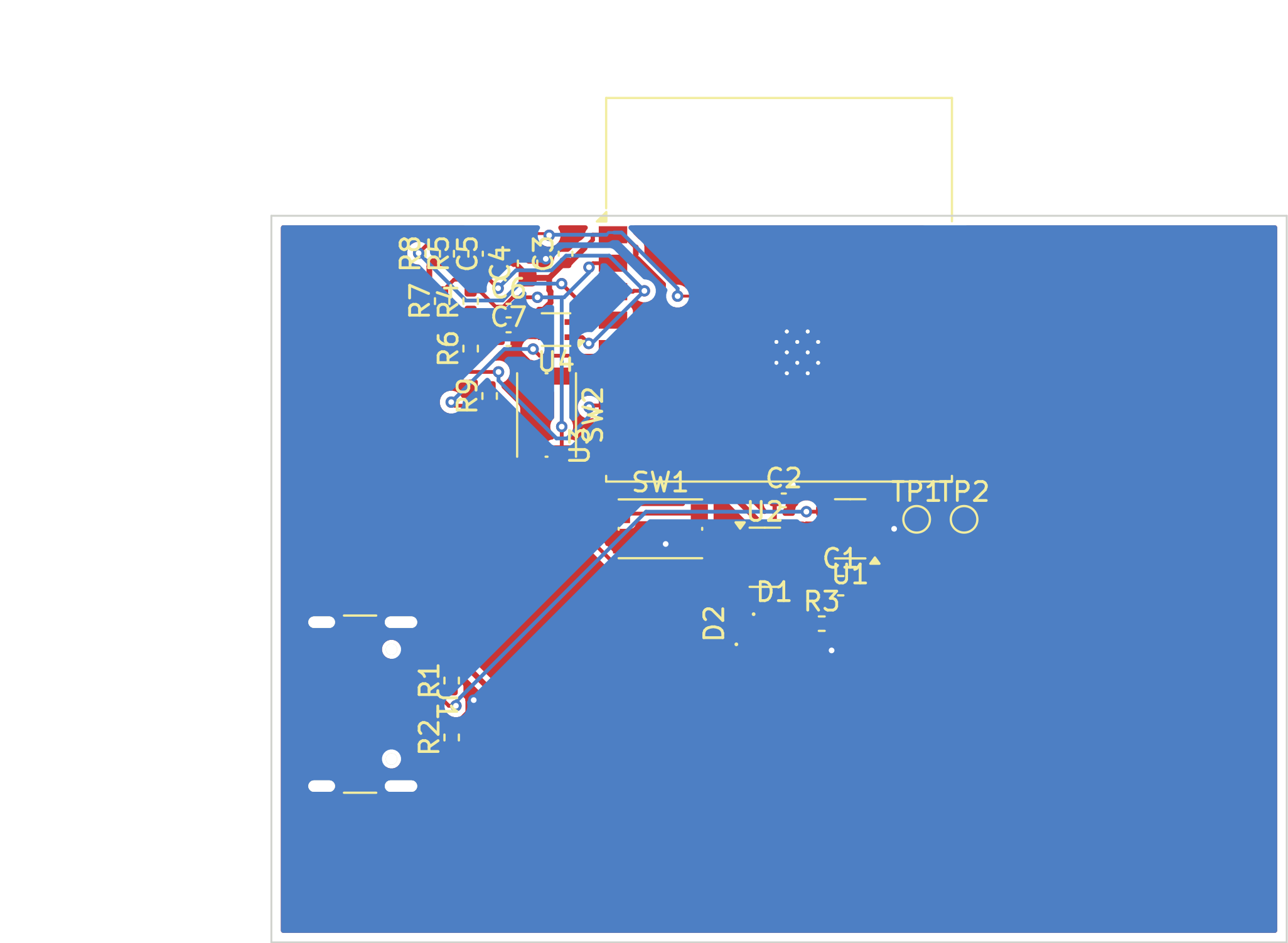

ESP32-C3 USB-C Sensor Dev Board: Top
Top · Design demo

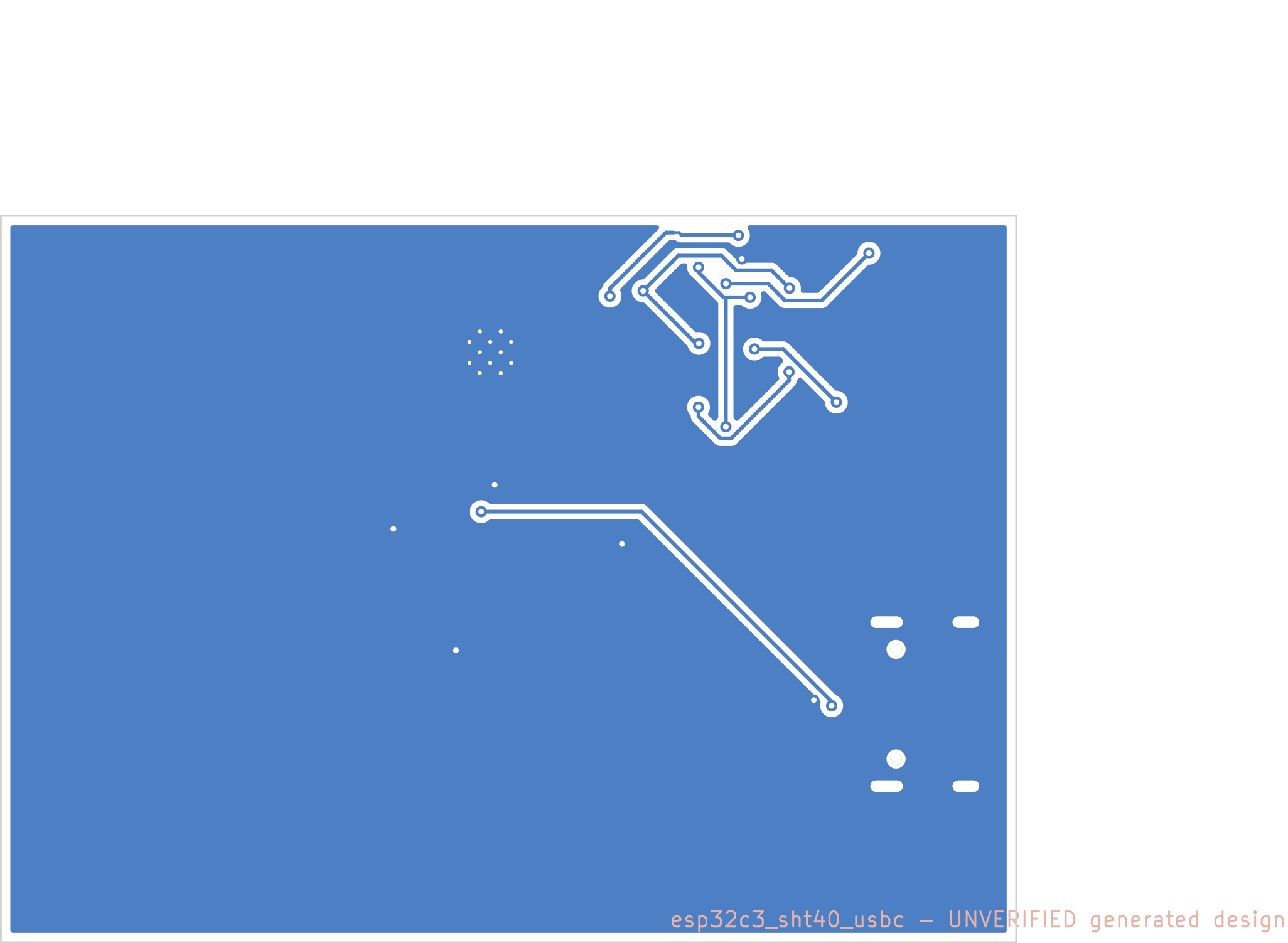

ESP32-C3 USB-C Sensor Dev Board: Bottom
Bottom · Design demo

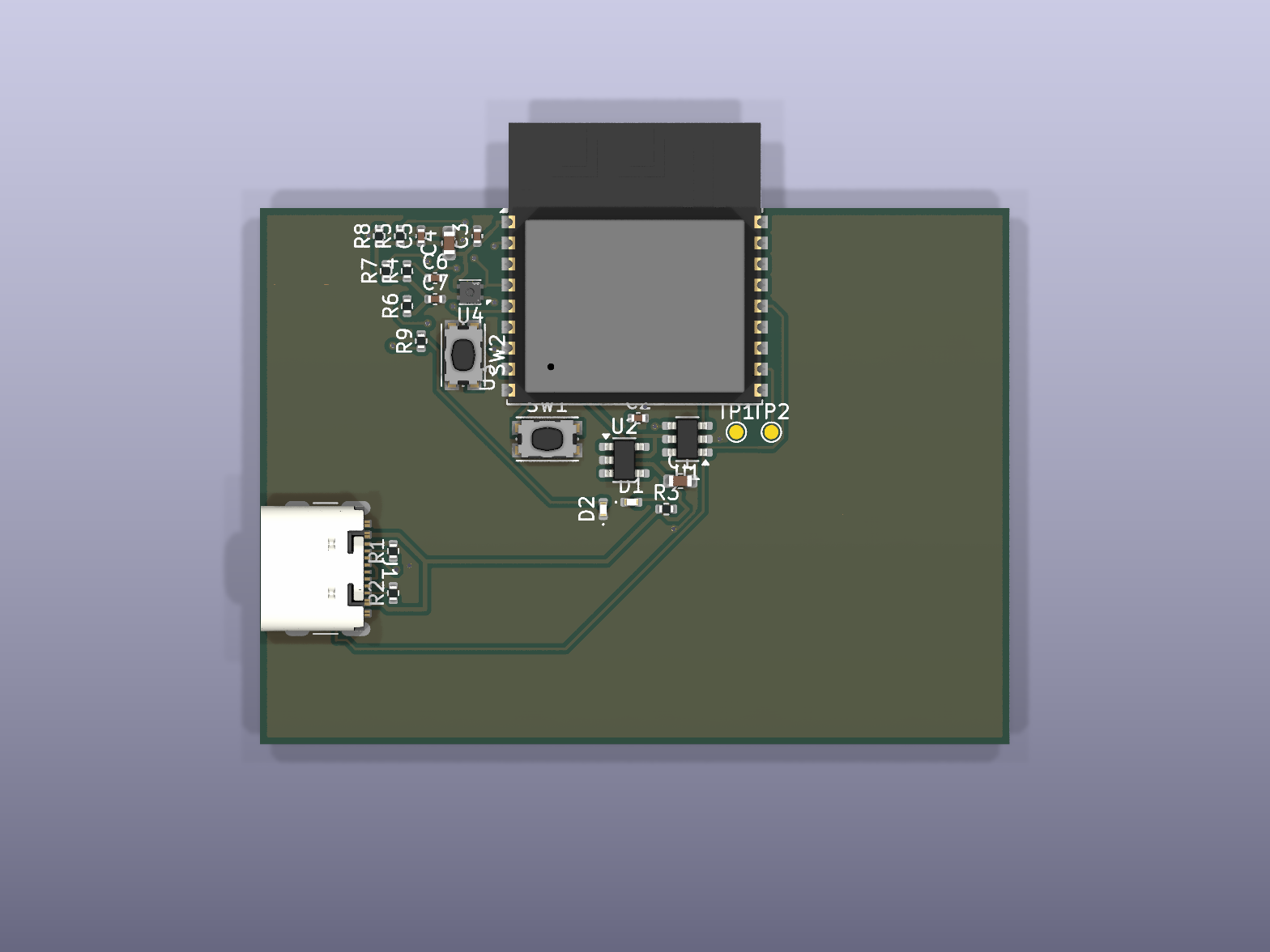

ESP32-C3 USB-C Sensor Dev Board: CAD render of the generated PCB
CAD render · design demo · not fabricated
04

Key features

A generated ESP32-C3 and SHT40 design with USB-C power and native USB, 3.3 V regulation, boot and reset buttons, and two indicator LEDs. This is a design demonstration: the PCB has not been fabricated or physically tested.

  • •ESP32-C3-WROOM-02-N4 module
  • •SHT40 temperature and humidity sensor on I2C
  • •USB-C power and native USB with ESD protection
  • •AP2112K-3.3 regulator
  • •BOOT and RESET buttons
  • •Power and status LEDs
05

Notes

  • Automated checks found 0 unrouted connections and 0 DRC errors; ERC and DRC warnings remain for engineer review.
  • The 3D images are CAD renders, not photographs of a manufactured board.
  • No physical power-on, firmware, or sensor measurements have been performed.
06

Files

This public case shows previews only. Contact us to order; manufacturing files are shared after payment.
